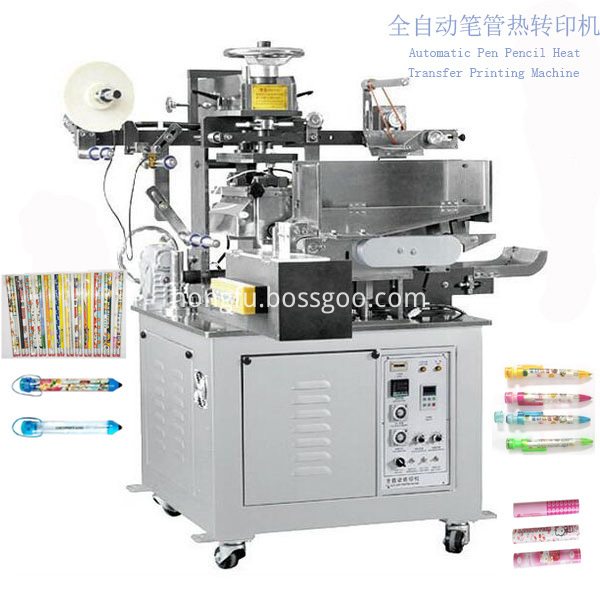

HK160 Automatic Heat Transfer Printing Machine for Pencil
Application
This Automatic Heat Transfer Printing Machine is designed for all kinds of round Products, Pencil Heat Transfer Printing, Pen Heat Transfer Printing , Bottles Heat Transfer Printing, and so on.
Description:
1.Auto and unloading loading.
2.Automatic heat transfer.
3 Stamping pressure, temperature and speed adjustable.
4.Auto registration with optical sensor.
5. Auto foil feeding and winding.
6. The height of stamping head can be adjusted.
7. Pressing delay time, winding delay time adjustable.
8.The scram safe protection device, protect the safety of the operator.
Tech -data :
Speed 40-60pcs/min
Product diameter 8-30MM
Product length 0-200MM
Power supply 20V/50HZ, 2.6kw
Temperature : Room Temp.~280℃
Stamping Pressure: 100kgf-250kgf
Weight 500kg
Measurement (L×W×H)1200*14000*1600MM
Product Pictures:
