Hitachi Notebook Hard Drive G-Table Damage Failure:
When the hard drive is powered on, it shows up in the system but is not recognized or ready. This issue often leads to data unavailability and can be quite frustrating for users.
Data Recovery Solution:
To address this problem, we connect the faulty drive to the PC3000-UDMA card and launch the main program. The first step is to check the status of the hard drive through the interface. A green light indicates that the drive is functioning, but the system fails to recognize it properly.

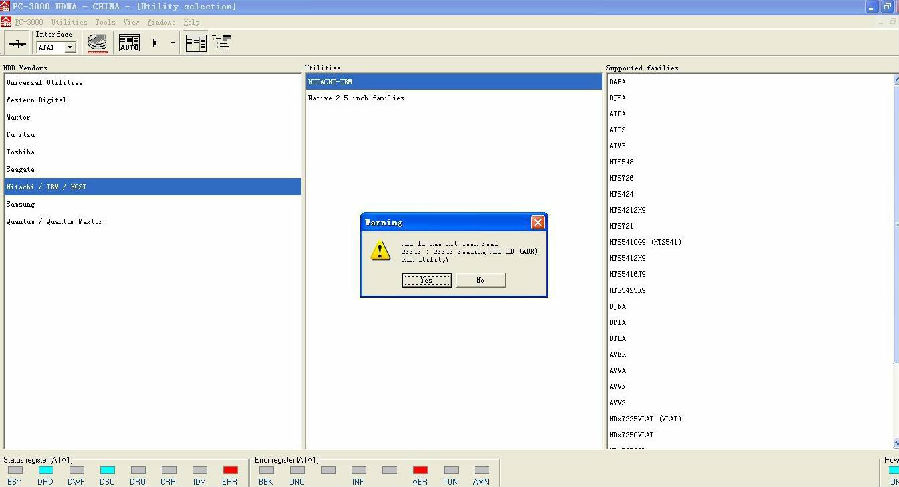

After entering the Hitachi-specific section of the software, a pop-up appears indicating that the hard drive ID cannot be read. This means the firmware does not recognize the model. In such cases, we proceed by forcing the program to enter manually.

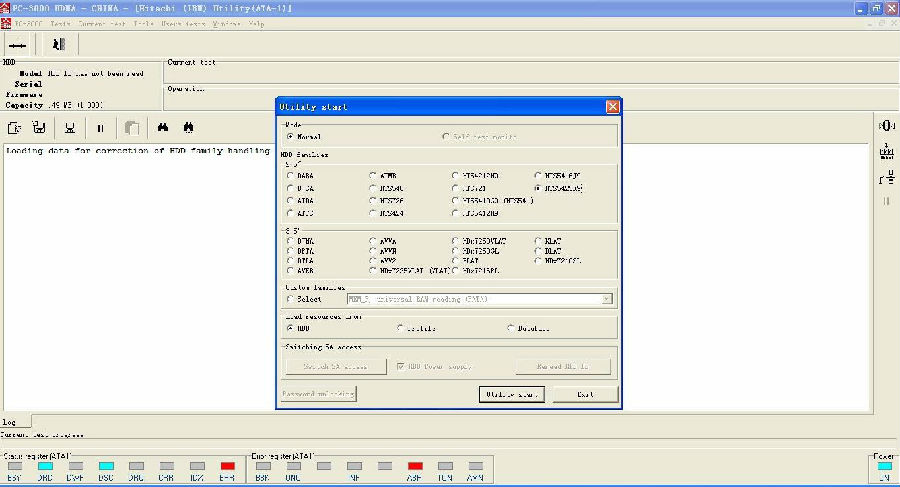

The information bar at the top of the screen displays the hard drive’s status. However, key details like the model, serial number, and firmware version are not recognized. We then manually select the appropriate series and force the program to move forward.

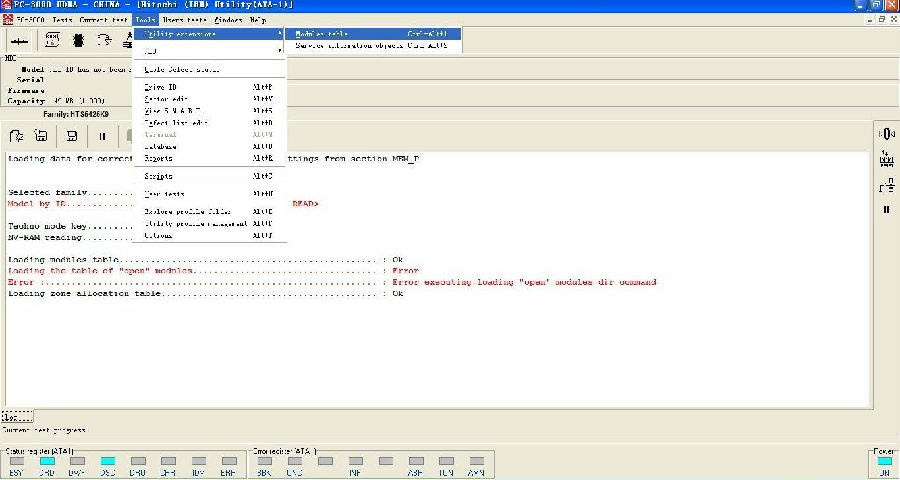

Based on the symptoms, it's clear there's an issue with the firmware. We begin by checking all firmware modules. The software automatically highlights the status of each module using different colors—green for normal, and other colors for problematic ones. Not all errors require fixing, as some modules are optional or not used during recovery.
Among the highlighted modules, the RDMT module stands out as it is crucial for the G-table function. Since the G-table is corrupted, we need to fix this module before proceeding with data recovery.

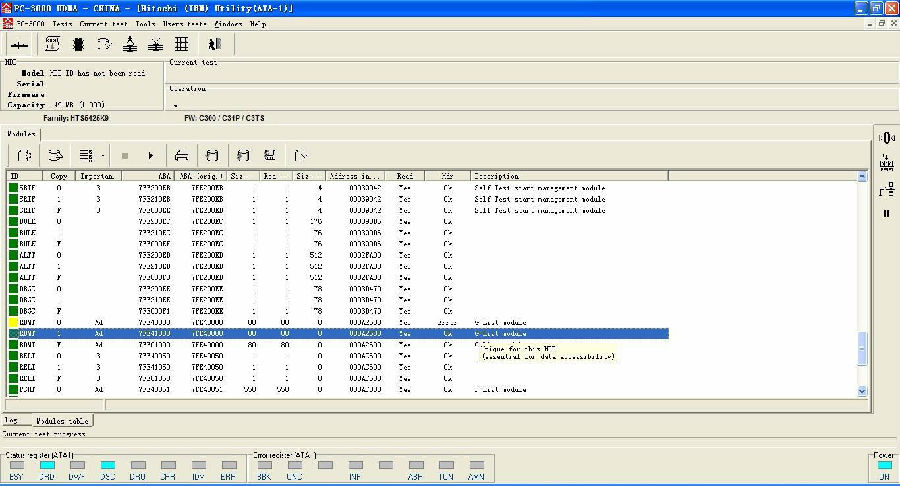

As seen in the image, there are three similar RDMT modules: RDMT0, RDMT1, and RDMT F. These modules are backups of each other, with RDMT F being a factory backup that users cannot modify. RDMT0 and RDMT1, however, are editable. Our plan is to replace the content of RDMT1 with that of RDMT0 to restore the G-table.

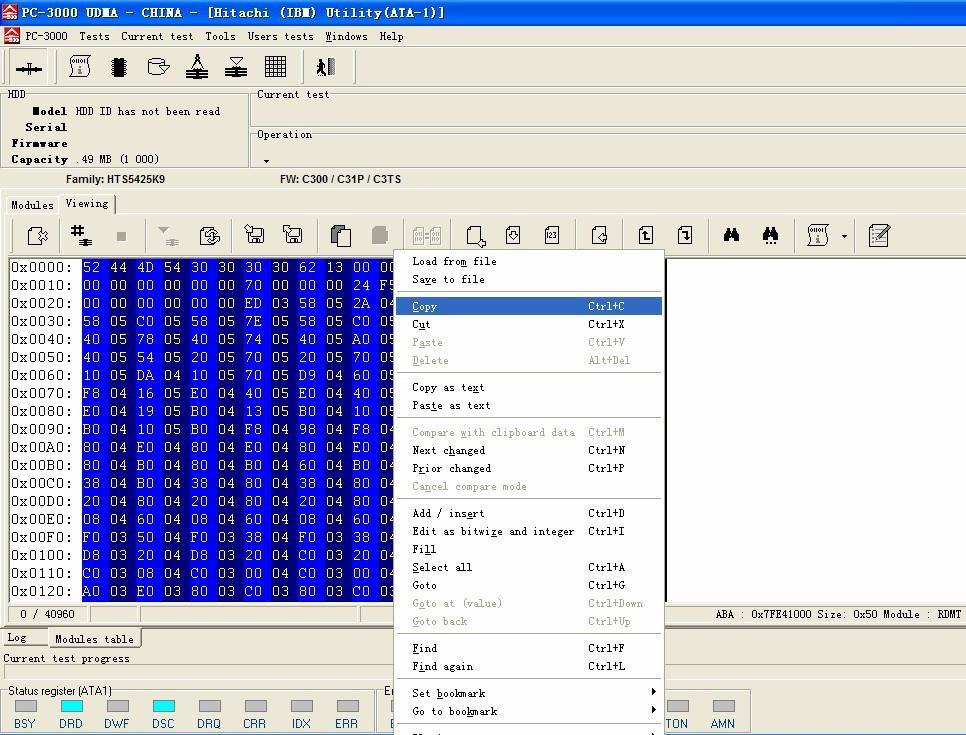

We open the RDMT1 module, copy its contents, and paste them into RDMT0. After saving, we power off the drive and re-enter the main program to verify the changes.

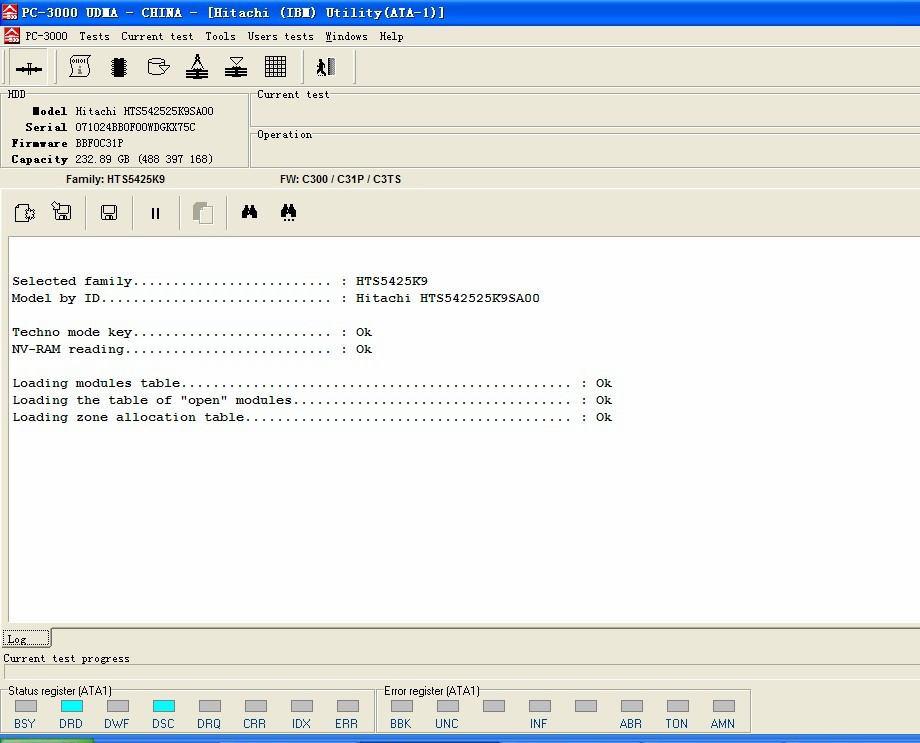

Once the drive is back online, it is quickly recognized, and the model and capacity information appear correctly. This confirms that the failure was indeed due to a G-table error. With the firmware repaired, data recovery proceeds smoothly.
Through extensive experience, we've found that G-table issues in Hitachi drives are quite common. If you're unsure about the cause of the problem, avoid making any changes directly on the drive. Instead, seek professional data recovery services. This approach increases the success rate and ensures efficient recovery without further damaging your data.
